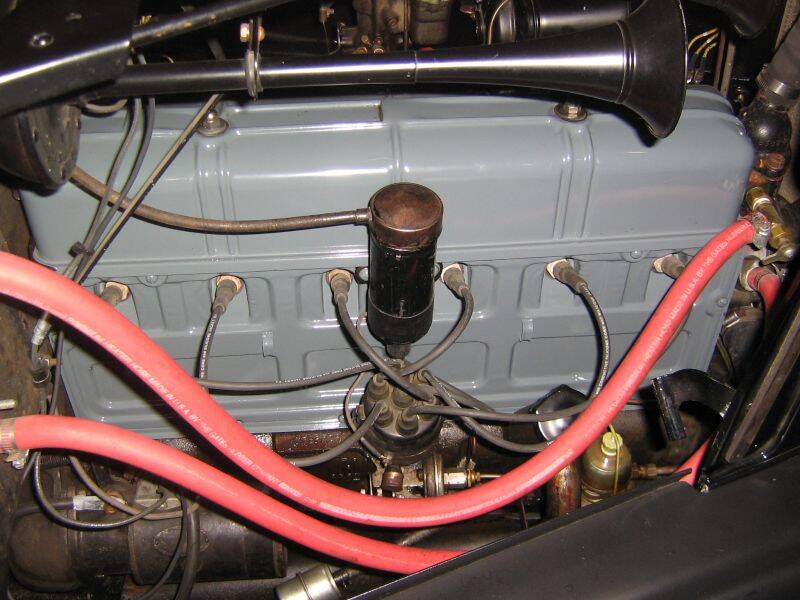

@pbmorrison-2 An electrolock is an armored cable housing that runs from the back of the ignition switch to the coil. They changed in appearance over the years but all served the same function, a deterrence to hot wiring and stealing a car. The image below shows the one on my old 38. A 31 would be different but I don't know what the specific differences would be (usually in how it connects to the coil).

IMG 1489

7046 old site posts
Save a life, adopt a senior shelter pet
There are many good people. If you can't find one, be one.
1938 Master Business Coupe-Sold, now living in New Jersey
1953 210 Sedan



ReplyQuote
pbmorrison
(@pbmorrison-2)
Eminent Member Registered
Joined: 4 months ago
Posts: 15

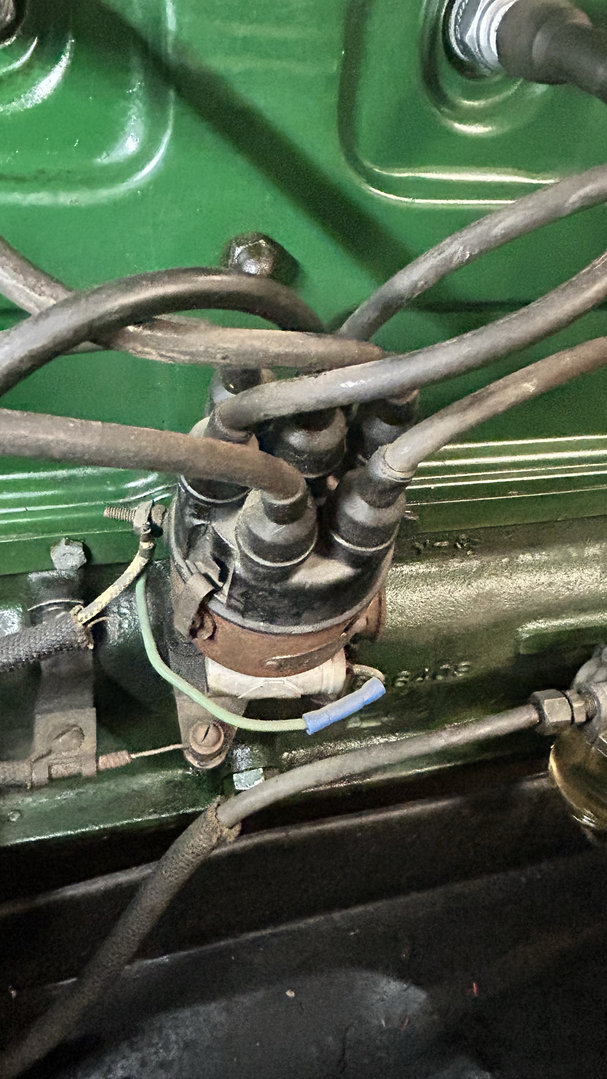

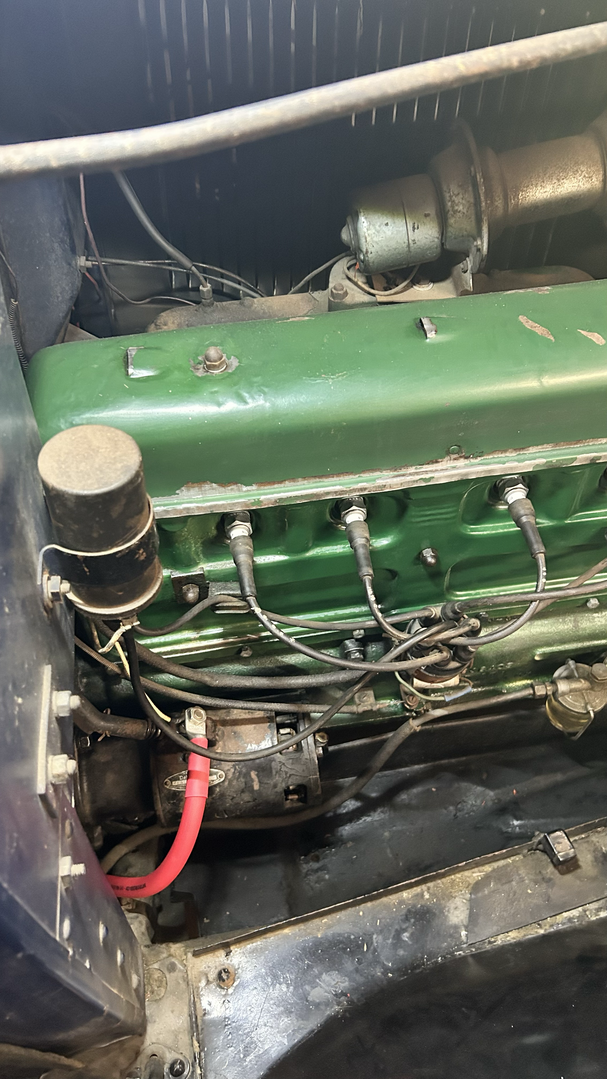

@tiny in comparing your photo to my, looks like the Electrolock was replaced.  Thanks




This post was modified 1 day ago by pbmorrison


ReplyQuote
David Dunton
(@david-dunton)
Estimable Member Registered
Joined: 18 years ago
Posts: 132


The 31 electrolock armored cable would have gone from the switch to the distributor with a regular coil mounted on the firewall. Yours has been replaced.




ReplyQuote
Tiny
 Tiny
(@tiny)
Hall Monitor Moderator
Joined: 21 years ago
Posts: 1340


@david-dunton Thank you David. I've removed my incorrect post to not muddy the water. Do you have a picture of the correct set-up?


7046 old site posts
Save a life, adopt a senior shelter pet
There are many good people. If you can't find one, be one.
1938 Master Business Coupe-Sold, now living in New Jersey
1953 210 Sedan



ReplyQuote
David Dunton
(@david-dunton)
Estimable Member Registered
Joined: 18 years ago
Posts: 132

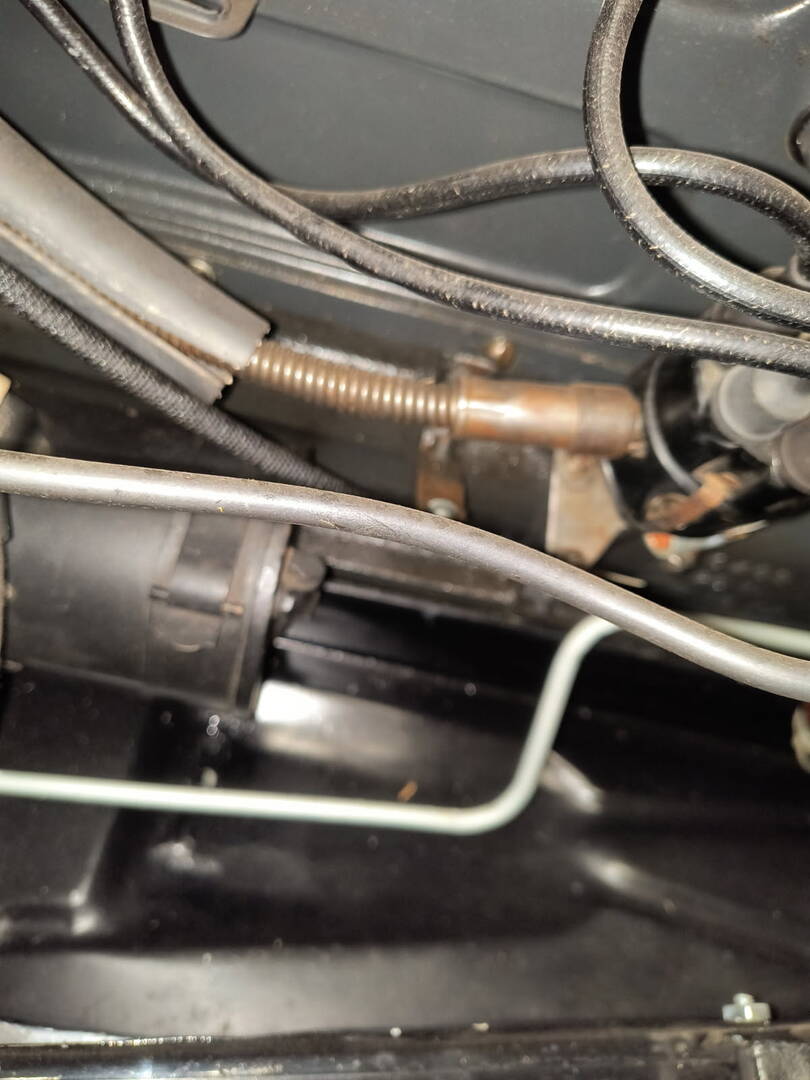

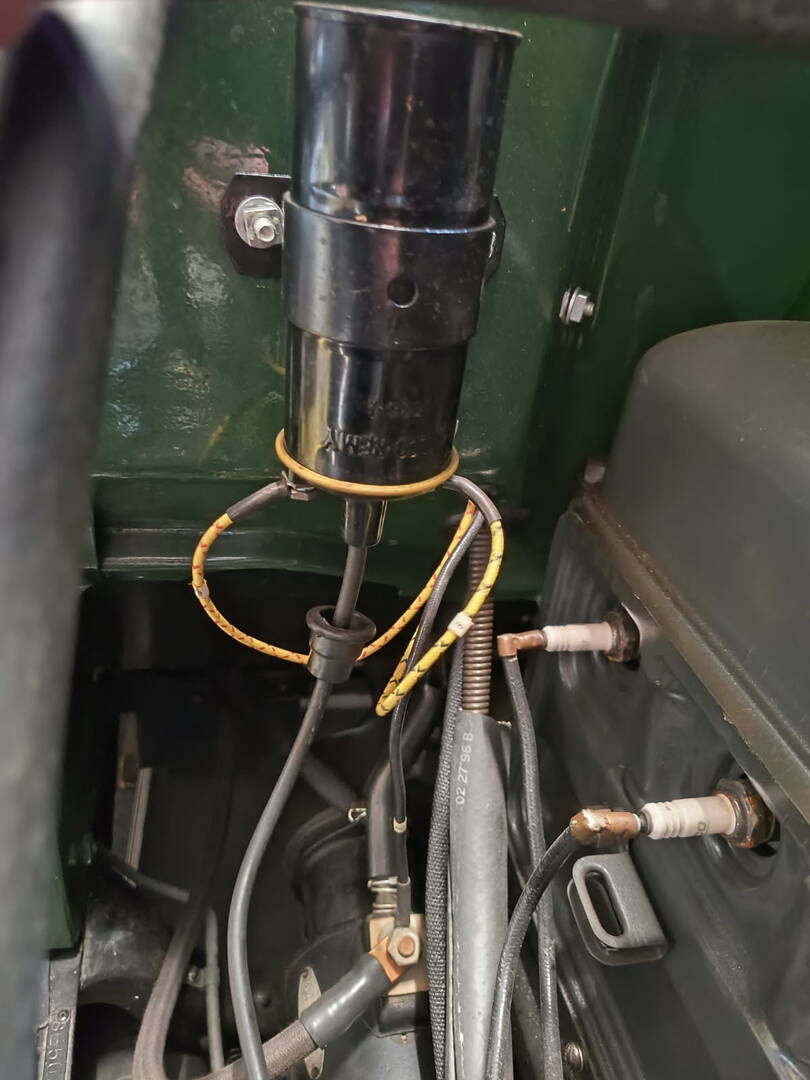

Here is a pic of the coil and you can see the armored cable running through the firewall. The other pic shows it at the distributor. I put a piece of split heaer hose around the cable to keep from accidentally grounding it on the starter cable lug.

Dave

image000000 (78)
image000000 (77)



ReplyQuote
