Need help ID engines and transmission question



lou mccarrell
(@lou)
Estimable Member Registered
Joined: 1 year ago
Posts: 68
Topic starter

Hey guys, I have two engines I acquired, but I'm not sure of the ID, Both four cylinders, and both were supposed to be 1928's, but I am not so sure. According to a chart I found somewhere, one should be a '28, and one a '37. SN's 2841182 and 4310682.

Also, where do I look for the casting no's?

And finally, an unrelated question, I'm trying to remove the shifter stick from the four speed in my '28 truck. shop manual indicates a two fingered tool to slip down into the tower top to unscrew the retaining nut, but I do not see any way to access the retaining nut. what am I missing


This topic was modified 3 weeks ago by lou mccarrell


Quote
Rustoholic
(@rustoholic)
ChatMaster Moderator
Joined: 35 years ago
Posts: 238


Hi Lou,

The casting numbers (dates) are located close to the distributor. They stick out and are coded in a three part character string:

  1. The first 'character' is a number (1-31) that indicates the day of the month that the block was cast.
  2. The second character is a letter that indicates the casting month. A=Jan, B=Feb, etc.
  3. The third character is a single number that indicates the casting year. 6=1926, 7=1927, 8=1928.

I believe the serial numbers you mentioned are stamped into a boss that is on the rear passenger side of the block. These numbers indicate where the block fits into the overall production numbers of the 4 cylinder engines. For example, 4310682 says that this block is the 4,310,682nd 4-cylinder block manufactured by Chevy. If I remember correctly, the entire 4 cylinder run was about 5.2 million units.

A 1928 block is different that the previous blocks in two ways: there is a hole (1/2"ish diameter) for the crankcase tube (under the water pump) that takes the fumes back to the carb and there are raised cast pieces that the push rod covers sit on. These two clues are unique to '28.

Cheers, Dean


Dean "Rustoholic" Meltz
San Leandro, CA
3511 posts on vccachat.org
Lurch -1927 LM one ton truck - tinyurl.com/Lurch-VCCACHAT-Gallery
Justin - 1928 AB Canopy Express (1/2 ton truck) - tinyurl.com/Justin-Stovebolt-Gallery



ReplyQuote
35mike
(@35mike)
Honorable Member Registered
Joined: 15 years ago
Posts: 488


@lou Lou, Later 4 speed transmissions had a "tin" cover at the base of the stick. you can push down and turn that cover and it unlocks from a pair if pins. It is the retainer that holds the lever in place. I have a 1928 4 speed somewhere but not close enough to look at for you.

Mike


Many Miles of Happy Motoring
3469 Posts on Old VCCA Chat



ReplyQuote
Rustoholic
(@rustoholic)
ChatMaster Moderator
Joined: 35 years ago
Posts: 238

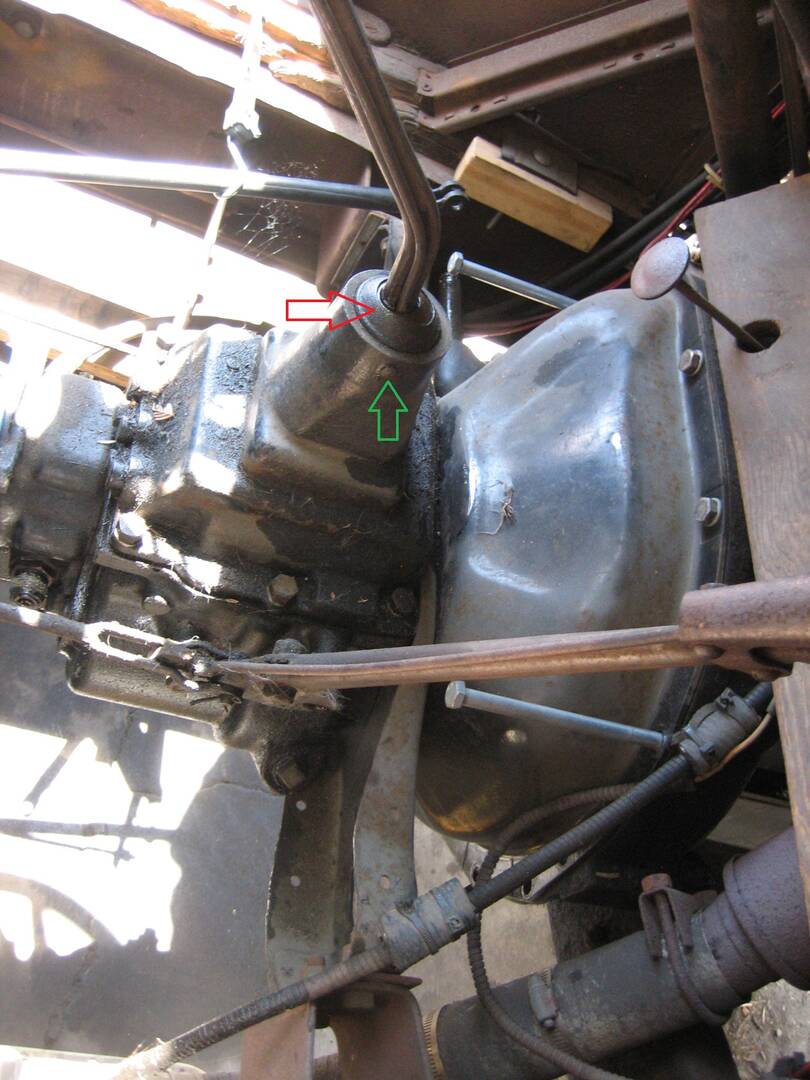

Here is a photo of the 4-speed transmission that I put into Lurch.

The red arrow is pointing at the tin ball cover at the base of the shifter. The green arrow is pointing one of the pins that the tin cover is latched to.

The idea is to push the tin cover down a little and turn it to get it to unlatch from the pins. Then, the shifter can be lifted out of the tower.

Cheers, Dean

1928 4 SpeedTranny

Dean "Rustoholic" Meltz
San Leandro, CA
3511 posts on vccachat.org
Lurch -1927 LM one ton truck - tinyurl.com/Lurch-VCCACHAT-Gallery
Justin - 1928 AB Canopy Express (1/2 ton truck) - tinyurl.com/Justin-Stovebolt-Gallery



ReplyQuote
lou mccarrell
(@lou)
Estimable Member Registered
Joined: 1 year ago
Posts: 68
Topic starter

Thanks to all!

Lou
