1941 1/2 ton pickup


    Last Post


 Arthur V Richmond
(@arthur-v-richmond)
New Member Registered
Joined: 27 years ago
Posts: 2
Topic starter June 1, 2026 12:29 pm

Looking for a picture of correct brake and clutch return spring  attaching points




Nick Gurin reacted
Quote
37Blue
 37Blue
(@lee)
Member Moderator
Joined: 21 years ago
Posts: 84
June 4, 2026 9:50 pm

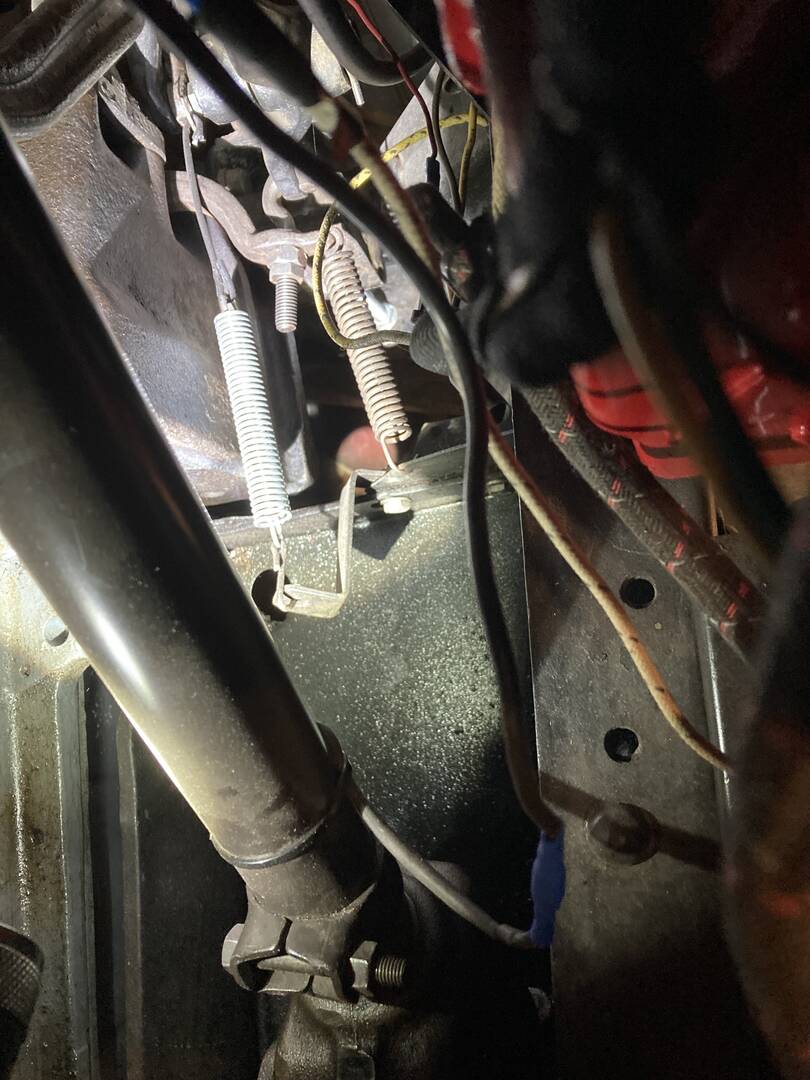

@arthur-v-richmond The attached photo is for a ‘46 Chevy 1/2 ton.  The attachment points for the two springs are the same or very similar at least as far back as ‘37 as I understand it.

IMG 5607

This post was modified 2 weeks ago by Tiny


Nick Gurin reacted
ReplyQuote
Nick Gurin
 Nick Gurin
(@nicholas-gurin)
Estimable Member Registered
Joined: 2 years ago
Posts: 92
June 4, 2026 10:39 pm

Thanks, Lee!

If Arthur had not asked this question when he did, I would have been asking it in a week or so...

Nick




Nick Gurin
Taos, New Mexico
1940 KC 1/2 Ton Pickup



ReplyQuote
 Arthur V Richmond
(@arthur-v-richmond)
New Member Registered
Joined: 27 years ago
Posts: 2
Topic starter June 5, 2026 6:40 pm

@lee Thanks  I do have that bracket and now know the right way to attach it.
