1932 main brake bar going from side to side ?.



Kevin Ray
(@kevin-ray)
Trusted Member Registered
Joined: 3 years ago
Posts: 43
Topic starter

Am I correct that when you bolt it to the frame it tightens down and should not move. The material that holds the steel sleeve in completely gone. That bling if I make Stella bushing to fit it and tak weld it to the arm this will eliminate a lot of slop and at least be a improvement.could not load photos will try again.



Quote
Kevin Ray
(@kevin-ray)
Trusted Member Registered
Joined: 3 years ago
Posts: 43
Topic starter

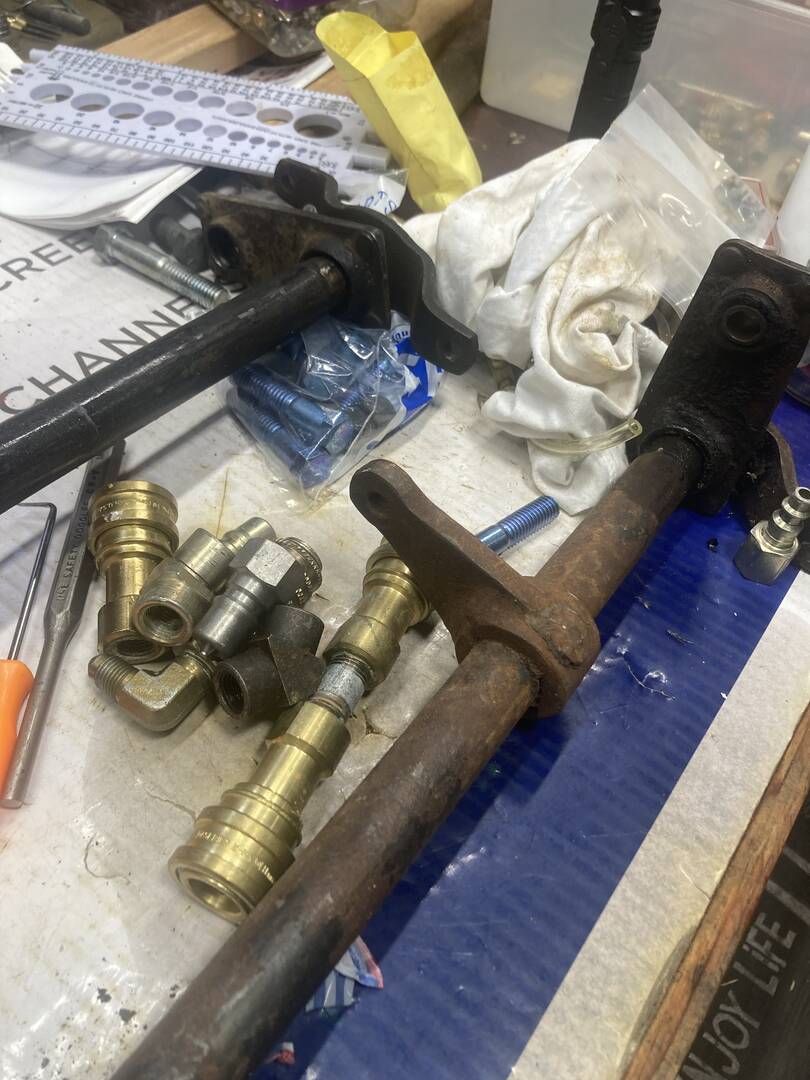

IMG 0175
IMG 0170


ReplyQuote
Chip
 Chip
(@chip)
Member Moderator
Joined: 55 years ago
Posts: 210


The outer support brackets need to be able to move forward and back. That way they compensate for minor differences in the brake adjustments. I am not aware of anyone making replacement bushings. I am sure there is a market for replacement parts.

How sweet the roar of a Chevy four
Participant on Chatter since 11/22/2001
19758 posts on the former Chatter site



ReplyQuote
Kevin Ray
(@kevin-ray)
Trusted Member Registered
Joined: 3 years ago
Posts: 43
Topic starter

@chip it looks like the bushing sticks out past the support on both sides. If you tighten it down it will pinch it against the frame and nut unless it’s left loose . If it pivots on the bolt with no grease fitting I guess that’s why they wear out. Guess I search the web for photos . Thanks for the info.

This post was modified 11 hours ago by Kevin Ray


ReplyQuote
Steve Dalphonse
(@steve-d)
Reputable Member Registered
Joined: 34 years ago
Posts: 227


@kevin-ray The bushing is rubber and replaceable. I think I got mine from the Filling Station . The rubber allows the shaft to flex thus the "equalizing'" effect. Scrape the old one out-clean the hole and install the new bushing with some lube (I used WD-40) .

This post was modified 10 hours ago by Steve Dalphonse

7472 old site post



ReplyQuote
Kevin Ray
(@kevin-ray)
Trusted Member Registered
Joined: 3 years ago
Posts: 43
Topic starter

@steve-d ok I think I get it now.



ReplyQuote
Steve Dalphonse
(@steve-d)
Reputable Member Registered
Joined: 34 years ago
Posts: 227


@kevin-ray The FS #was 30-371 but not sure they still carry it. Steele Rubber has them for $48.89 for a pair. Pt #60-0371-24.

7472 old site post
