Does anyone have a photo, or direct me to one, of how all the linkages etc go together.
I’m pretty sure I have all the bits. Just not real sure how they all go together
Hi Bob
Hope this helps.

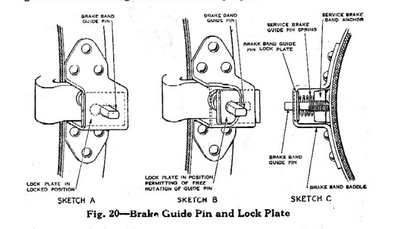

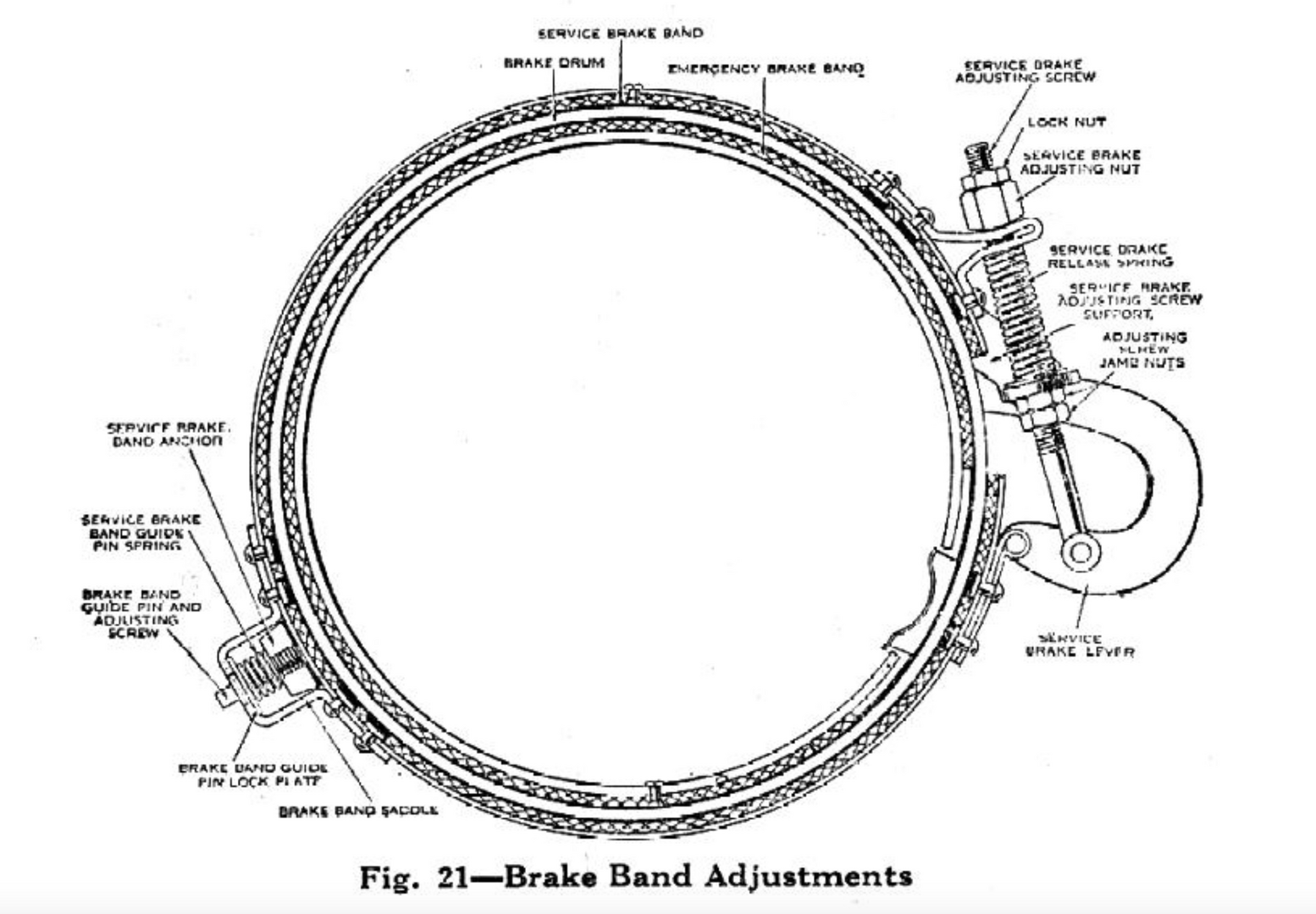

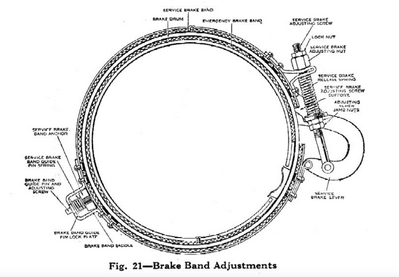

The following 3 illustrations can be found on 3 pages of the 1928 Operators Manual found here:
https://chevy.oldcarmanualproject.com/chevyowner/28cim48.htm
https://chevy.oldcarmanualproject.com/chevyowner/28cim49.htm
https://chevy.oldcarmanualproject.com/chevyowner/28cim50.htm
Ole S Olson
Saskatoon, Sask, Canada
1946 DR 3/4 ton stake
1139 old site posts
Thank you for that. I do have the Manual and have found it quite helpful. But the question I should have asked is how do you connect all the bits of the handbrake?
I have since figured it out. Unfortunately the manual doesn’t show it at all.
Ole S Olson
Saskatoon, Sask, Canada
1946 DR 3/4 ton stake
1139 old site posts
There is a note saying I have not reached the minimum number of posts to enable me to attach files.
In any case, there’s not much to look at yet. A bare chassis. Front end done and I’m working on the back. Still a long way to go. Haven’t even started on the body yet.
There is a note saying I have not reached the minimum number of posts to enable me to attach files.
Two more and you'll be good to go.
7046 old site posts
Save a life, adopt a senior shelter pet
There are many good people. If you can't find one, be one.
1938 Master Business Coupe
1953 210 Sedan
